Outward opening
MACO Espags Mach II:
In a class of its own

In a class of its own

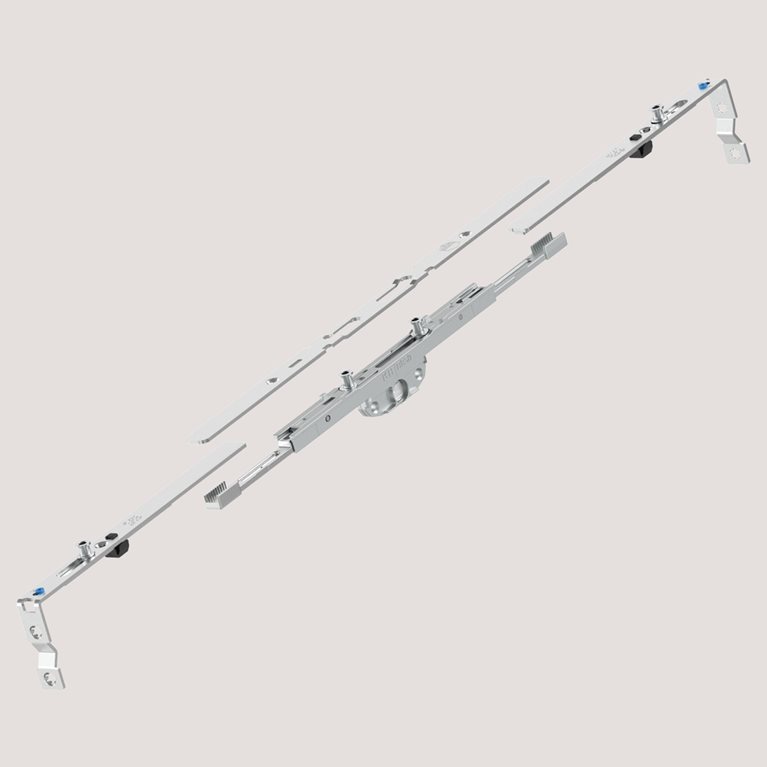

MACO Espags Mach II

Safe, functional and reliable: The MACO Espags Mach II shootbolt espagnolette system is the traditional choice when it comes to hardware for outward-opening windows. The high-quality workmanship ensures maximum ease of use for years to come. Installation is systematic and fast – even for customised window solutions. MACO Espags Mach II also exceeds industry standards and enables construction of windows with burglary protection in accordance with PAS 24.

Benefits for fabricators

  • Quick and secure: The components of the MACO Espags Mach II shootbolt espagnolette system can be combined intuitively, are easy to insert into the Eurogroove, and include a version that does not need to be cropped to length.

  • One system, many options: In addition to standard windows, MACO Espags Mach II enables solutions for single- and double-sash windows as well as side- and top-hung windows. Low handle heights are also possible for easy access on hard-to-reach windows.

  • Quality down to the last detail: With MACO Espags Mach II, contact pressure can be adjusted by plus or minus 0.75 mm. This ensures easy-to-operate windows and optimum thermal performance – at all times throughout the life of the window.

Benefits for consumers

  • Better safe than sorry: With central mushroom cams and a combined mushroom and shootbolt corner combination, MACO Espags Mach II ensures maximum security with burglary protection in accordance with PAS 24.

  • Included as standard: With the night vent position, MACO Espags Mach II components allow air flow that ensures high air quality in occupied rooms.

  • Saves energy and money: The contact pressure of MACO Espags Mach II can be easily adjusted to ensure optimum thermal performance – at all times throughout the life of the window.

MACO Espags Mach II product versions

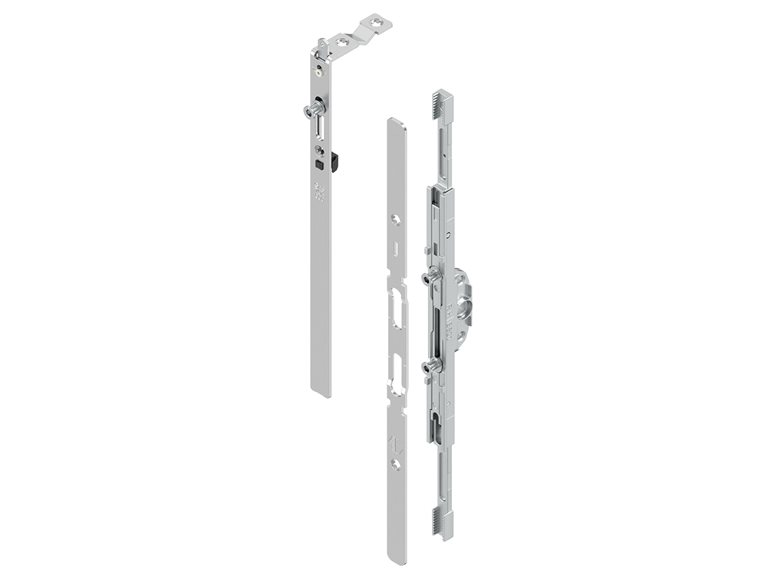

MACO Espags Mach II non-croppable

MACO Espags Mach II non-croppable

When it comes to speed of installation, MACO Espags Mach II non-croppable is ideal. This version was specifically designed for accuracy, speed and ease of fabrication, removing the need to crop components to length. In addition to being easy to install, it is extremely easy to operate in daily use. The product is available with 20 and 22 mm backsets as well as 7.7 or 9.0 mm mushroom cam heights and offers extensions for sash rebate sizes from 500 - 1400 mm.

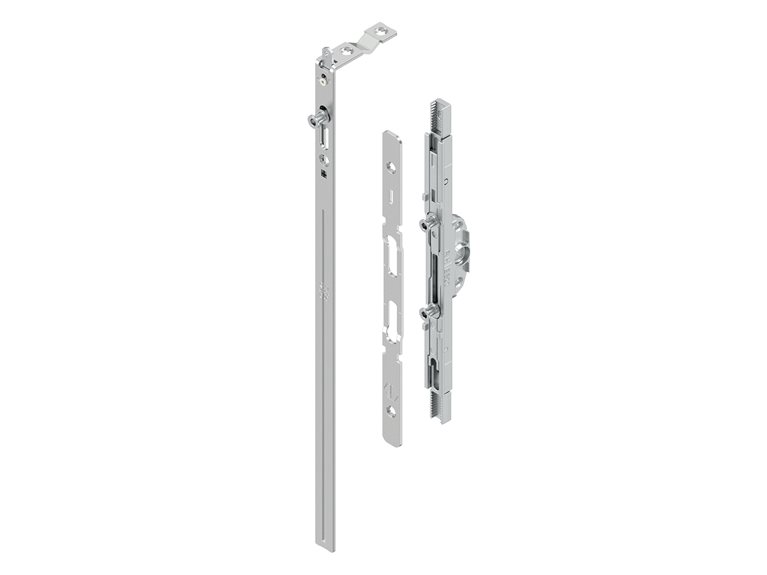

MACO Espags Mach II croppable

MACO Espags Mach II croppable

If flexibility is needed for customised window solutions, MACO Espags Mach II croppable offers the best solution. Easy-to-crop components enable flexible construction of a variety of window styles. Low handle heights allow easy access on hard-to-reach windows. Centre locking solutions can be used if locking points are required next to window hinges for improved insulation and and security. This product version is available with 20 and 22 mm backsets and 7.7 or 9.0 mm mushroom cam heights, and offers extensions for sash sizes from 300 - 1400 mm.
